Product Summary
The MAX2671EUT+T is a miniature, low-cost, low-noise upconverter mixer. It is designed for low-voltage operation and is ideal for use in portable consumer equipment. Signals at the IF input port are mixed with signals at the local oscillator (LO) port using a double-balanced mixer. The MAX2671EUT+T upconverter mixer operates with IF input frequencies between 40MHz and 500MHz, and upconvert to output frequencies as high as 2.5GHz.
Parametrics
MAX2671EUT+T absolute maximum ratings: (1)VCC to GND: -0.3V to +6.0V; (2)IFIN_ Input Power (50Ω source): +10dBm; (3)LO Input Power (50Ω source): +10dBm; (4)Operating Temperature Range: -40℃ to +85℃; (5)Junction Temperature: +150℃; (6)Storage Temperature Range: -65℃ to +160℃; (7)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX2671EUT+T features: (1)RF Output Frequencies: 400MHz to 2.5GHz; (2)Low Noise Figure; (3)+2.7V to +5.5V Single Supply; (4)High Output Intercept Point (OIP3); (5)1μA Shutdown Mode; (6)Ultra-Small Surface-Mount Packaging.

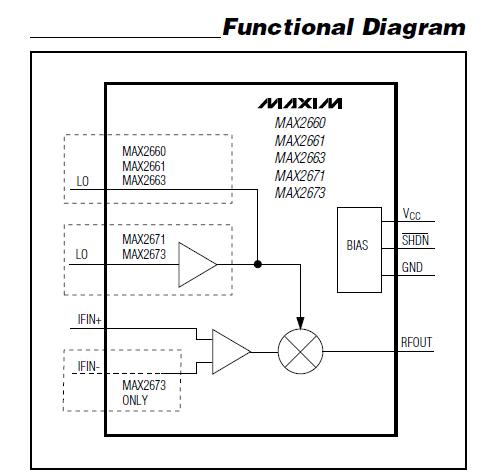

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX2671EUT+T |
Maxim Integrated Products |
Up-Down Converters 400MHz to 2.5GHz Upconverter |
Data Sheet |
|
|
||||||||
