Product Summary

The ADM213EARSZ is a EMI/EMC Compliant, 615 kV ESD Protected, RS-232 Line Driver/Receiver. It is suitable for Laptop Computers, Notebook Computers, Printers, Peripherals and Modems.

Parametrics

Absolute maximum ratings: (1)VCC: –0.3 V to +6 V; (2)V+: (VCC –0.3 V) to +14 V; (3)V– : +0.3 V to –14 V; (4)Input Voltages: TIN: –0.3 V to (V+, +0.3 V); RIN: ±30 V; (5)Output Voltages: TOUT: ±15 V; ROUT: –0.3 V to (VCC +0.3 V).

Features

Features: (1)Complies with 89/336/EEC EMC Directive; (2)Fast Transient Burst (EFT) Immunity (IEC1000-4-4); (3)Low EMI Emissions (EN55022); (4)Eliminates Costly TranZorbs; (5)460 kbits/s Data Rate Guaranteed; (6)Single +5 V Power Supply; (7)Shutdown Mode 1 mW; (8)Plug-In Upgrade for MAX2xxE; (9)Space Saving TSSOP Package Available.

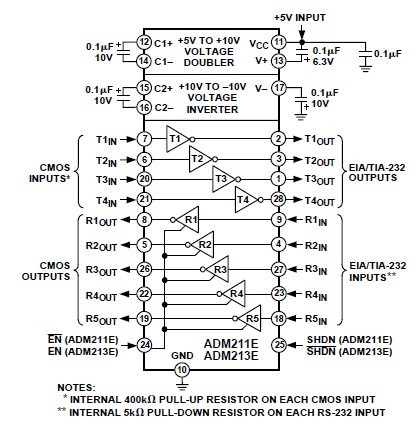

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

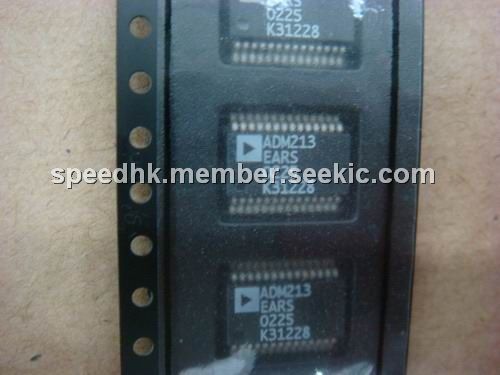

ADM213EARSZ
ADM213EARSZ


IC TX/RX RS-232 5V 0.1UF 28SSOP

Data Sheet

0-1: $2.24
1-10: $2.00
10-100: $1.64
100-250: $1.48
250-500: $1.33
500-1000: $1.12
1000-2500: $1.07
ADM213EARSZ-REEL
ADM213EARSZ-REEL


IC TXRX RS232 5V 0.1UF 28SSOP

Data Sheet

0-1500: $1.12
1500-3000: $1.07
